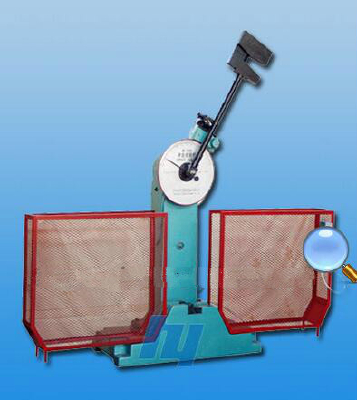

The machine is used for measuring the performance of the metal material under dynamic load, so as to judge the performance of the material under dynamic load. The machine uses the impact specimen left after she energy automatic pendulum movement and convenient operation, high work efficiency, safe and reliable, suitable for all kinds of impact tests in laboratory are widely used in metallurgy, machinery, aerospace and other industries, quality supervision.

Main technical specifications:

1 impact energy: 300J, 150J; 2 impact speed: 5.2m/S;

3 yang angle: 150 degrees 4 bearing span: 40mm;

5 bearing fillet radius: R1 ~ 1.5mm 6 impact tool radius: R2 ~ 2.5mm

7 swing hammer torque (impact constant):80.3848N.m, 163.7695N.m

8 swing center to the impact point of the center of the impact point (test center) distance: 750mm

9 the bearing surface of the test specimen is 0 degrees;

10 impact angle: 30 1;

11 impact knife thickness 16mm;

12 sample size: 10 x 10 (7.5 or 5) * 55mm

13 power supply: 380V, 180W;

14 exterior dimensions: (host) 2124 * 725 * 1340mm;

15 weight: 450kg
