Use domain:

The machine adopts stepper motor as a power source; adopts the advanced integrated technology, amplification of PCI data acquisition and control system design, test force, deformation amplification, A/D conversion process to achieve the full digital adjustment. The machine can be used to test and analysis of mechanical properties of various metals and non metals and composite materials, widely used in aerospace, petrochemical, machinery manufacturing, electric wire, cable, fiber, textile, plastic, rubber, ceramics, food, pharmaceutical packaging, plastic pipe, plastic doors and windows, geotextile, film, wood, paper, metal materials and manufacturing, according to GB, JIS, ASTM, DIN, ISO and other standards automatically calculate the maximum test force, fracture stress, yield strength, yield strength, tensile strength, compressive strength, elongation, tensile modulus, bending elastic modulus test data.

Three. According to the standard:

Meet the requirements of the national standards, in accordance with GB, ISO, ASTM, DIN and other standards for data processing. Can meet the requirements of the user and provide the standard.

Five, key description:

1 host: This machine adopts double arm structure to achieve the desktop space pull pressure, lifting beams can be stepless speed regulation, replacing columns, screw, housing may change the test space. The transmission system is composed of circular arc synchronous tooth type belt, lead screw pair, stable running, high efficiency, low noise and no pollution.

2 attachment:

Standard configuration: a pair of clip tension and compression with a pair of.

Six, function introduction

A) this machine uses the built-in controller, guaranteed that this machine can realize the constant velocity displacement control.

B) using stepping motor, the performance is stable and reliable, with over current, over voltage, over speed, overload and other protective devices.

C) electrical control line with reference to international standards, in line with the national testing machine electrical standards, strong anti-interference ability, to ensure the stability of the controller, the accuracy of the experimental data.

D) automatic transmission: according to the load size automatically switch to the appropriate range, to ensure the accuracy of measurement data; to achieve a real sense of the physical zero, gain adjustmenttest force measurement, automatic zero calibration, and save, no part of any simulation of regulation, control of highly integrated circuits

E) save conditions: control datasample test conditions can be made into modules, convenient batch test;

F) automatic transmission: the speed of the moving beam can be changed automatically according to the preset program, and also can be changed manually;

G) automatic calibration: the system can automatically realize the calibration accuracy of the indication;

H) automatic preservation: the end of the test, the test data and curves automatically saved;

I) process implementation: the test process, measurement, display and analysis are completed by the computer;

J): batch test samples on the same parameters, one set after distal;

K) test software: Chinese WINDOWS interface, menu tips, mouse operation;

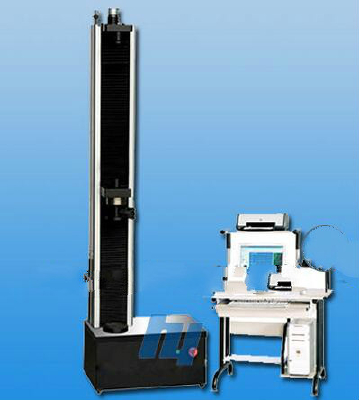

Keywords: single arm type microcomputer control electronic universal testing machine
