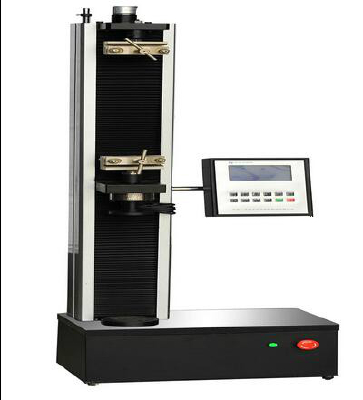

WDW-5HS LCD digital display electronic tensile testing machine (Note: picture for reference only, in order to prevail in kind), function and use of this machine is mainly used for all kinds of metal, non-metallic composite materials and mechanical properties testing. Automatic control and data acquisition system is designed, which realizes the full digital adjustment of data acquisition and control process. Also according to the requirement of matching the corresponding controller, test data acquisition, data processing and computer network transmission. This machine is suitable for materials, aerospace, petrochemical, waterproof materials, film, wire and cable, fiber, textile, rubber, ceramics, food, pharmaceutical packaging, geotextile, film, wood and paper manufacturing industry and all levels of product quality supervision department, and is also suitable for colleges teaching work. Two, the main technical indexes of 1) maximum force test sensor: 5000N 2) test force range, accurate measurement range 2%-100% test force, the force resolution 0.001N; 3) test force measurement accuracy: 1%; 4) displacement ratio: 0.1-500; 5) resolution 0.015) tensile test space: 0 ~ 800mm (also can be customized according to the consumer; 6)) power supply: 0.4kW, 220V, 50Hz; three, the main configuration of a host (1) containing a pair of precision screw); 2) (a special tensile AIDS; concrete tensile with customized according to user requirements, for each fixture ranging from 600-1500 yuan between) 3) a stepping motor; (optional AC servo motor to the other charges) 4) arc synchronous gear belt speed control system of a; 5) a high precision load sensor; 6) LCD digital display control system Sets. 7) micro printer (optional, surcharge) four, 1) introduced the function of automatic shutdown: fracture of the specimen, the movable beam automatic stop; 2): automatic calibration system can automatically calibrate the accuracy of indication; 3) the process of implementation: testing process, measurement and display by MCU; 4) limit protection: a programmable and mechanical level two limit protection; 5) overload protection: when the load exceeds the maximum value of 3-5% of all files, automatic shutdown
